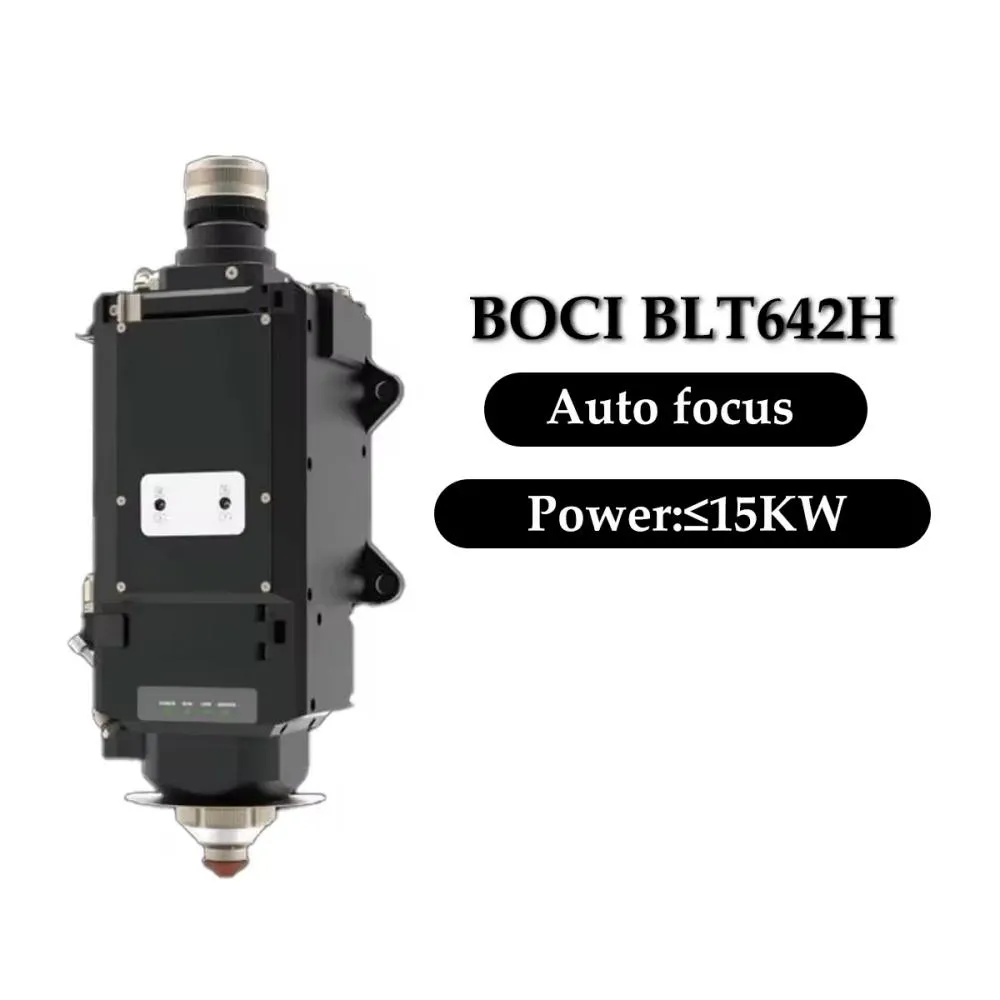

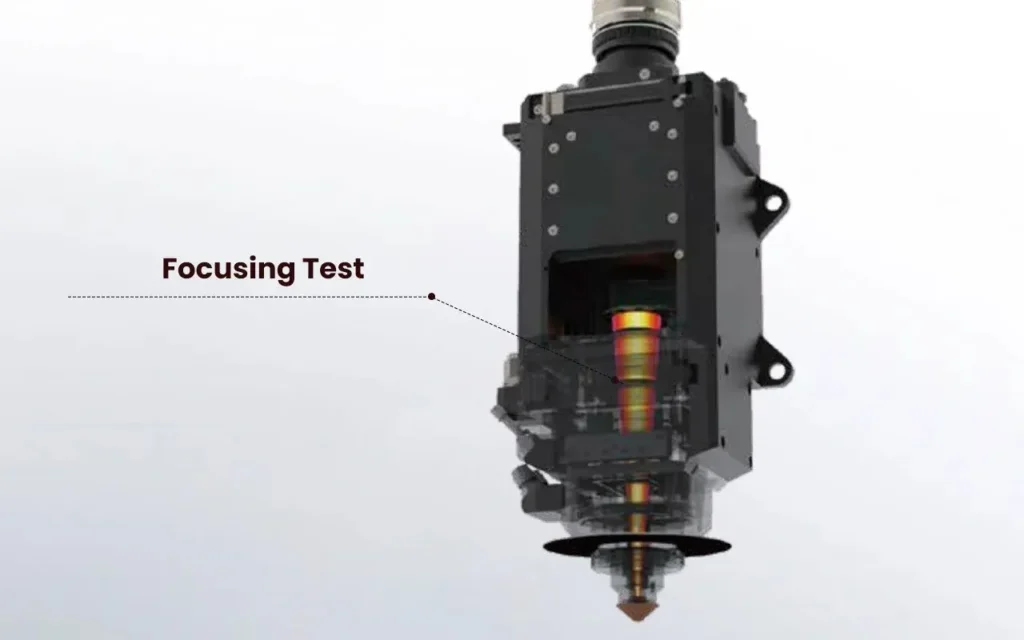

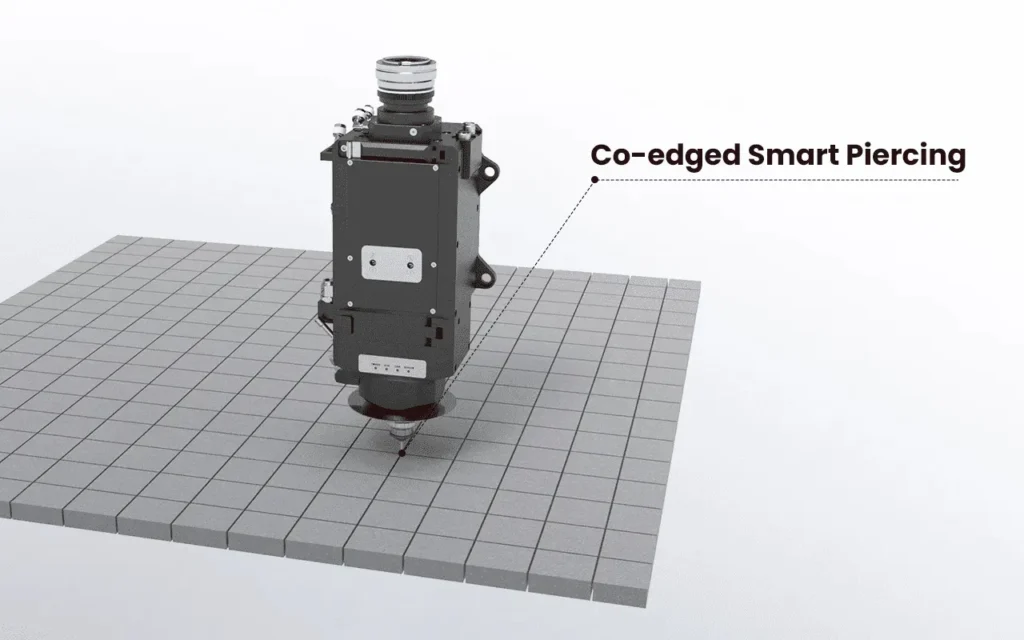

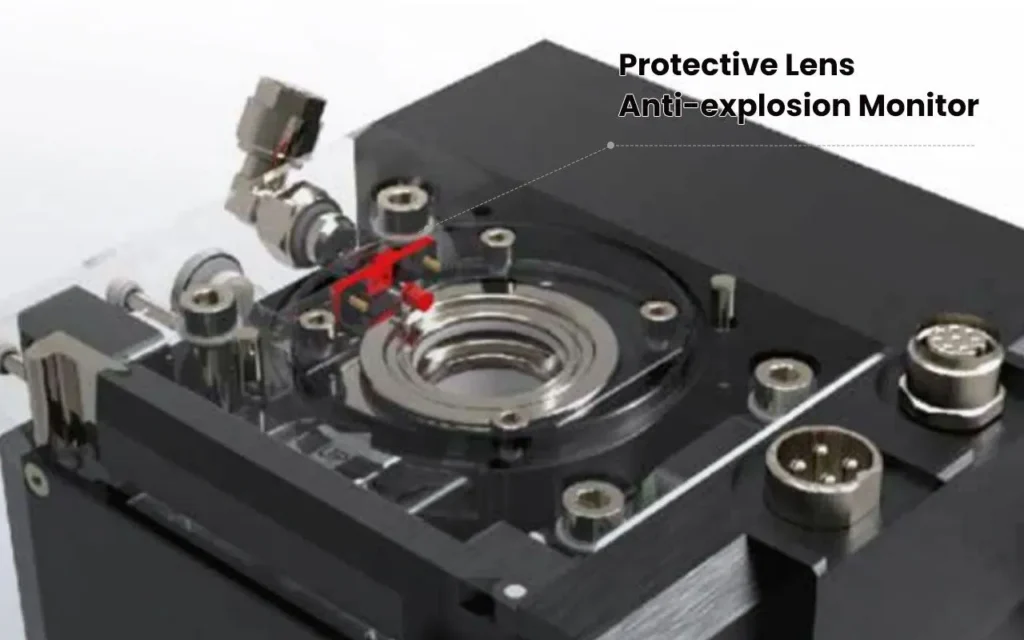

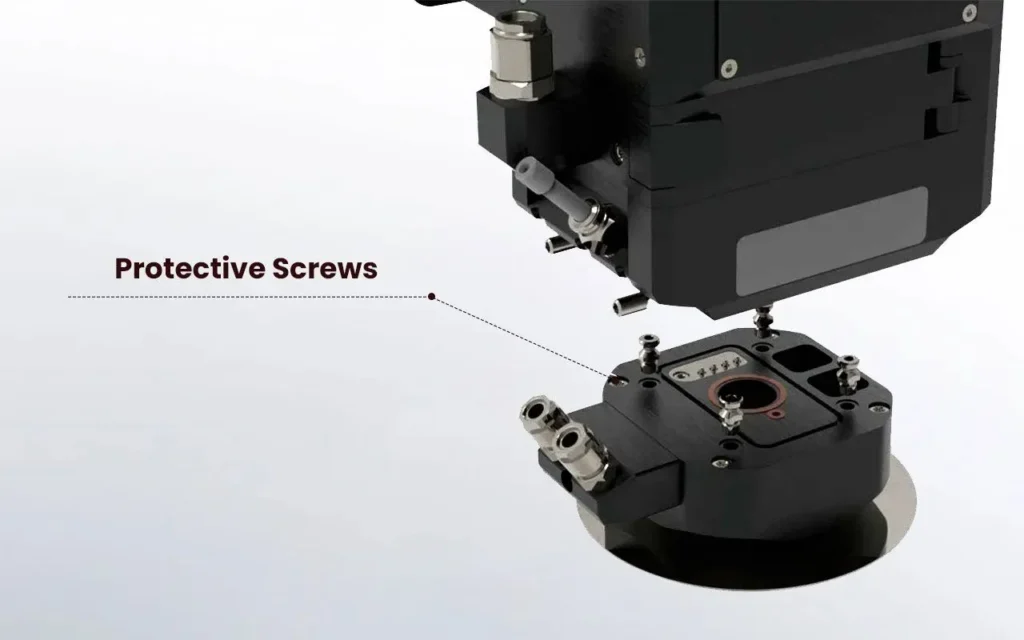

The Boci BLT6 series is an intelligent cutting head developed for ultra-high-power laser equipment (supports a maximum power of 40KW). It features a new optical path design and optimized optical lenses, with easy installation, simple debugging, excellent performance, dual dust-proof protection, and stable cutting. The perforation detection and process monitoring functions can effectively improve production efficiency and product yield and meet the strict performance requirements for high-power cutting with air and nitrogen.

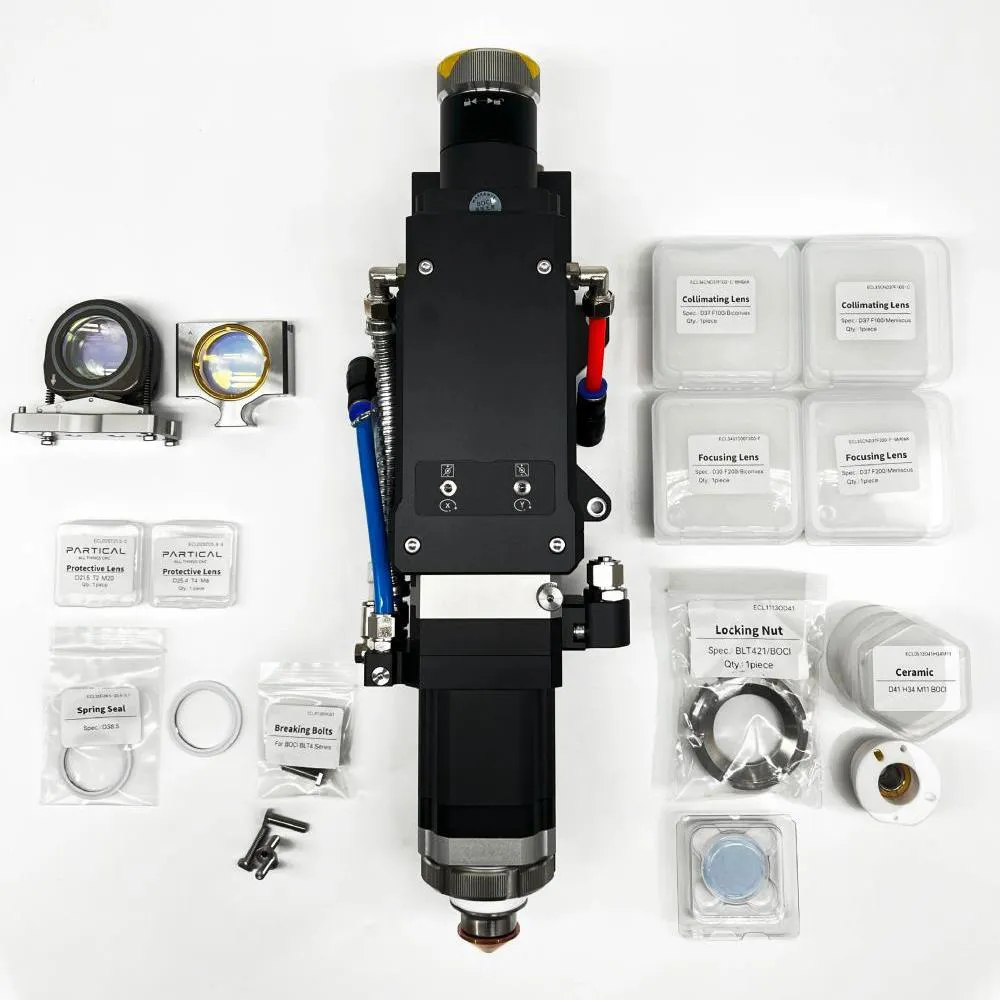

Laser Consumables Parts
Protective Lens
Laser Cutting Nozzles
Laser Ceramics

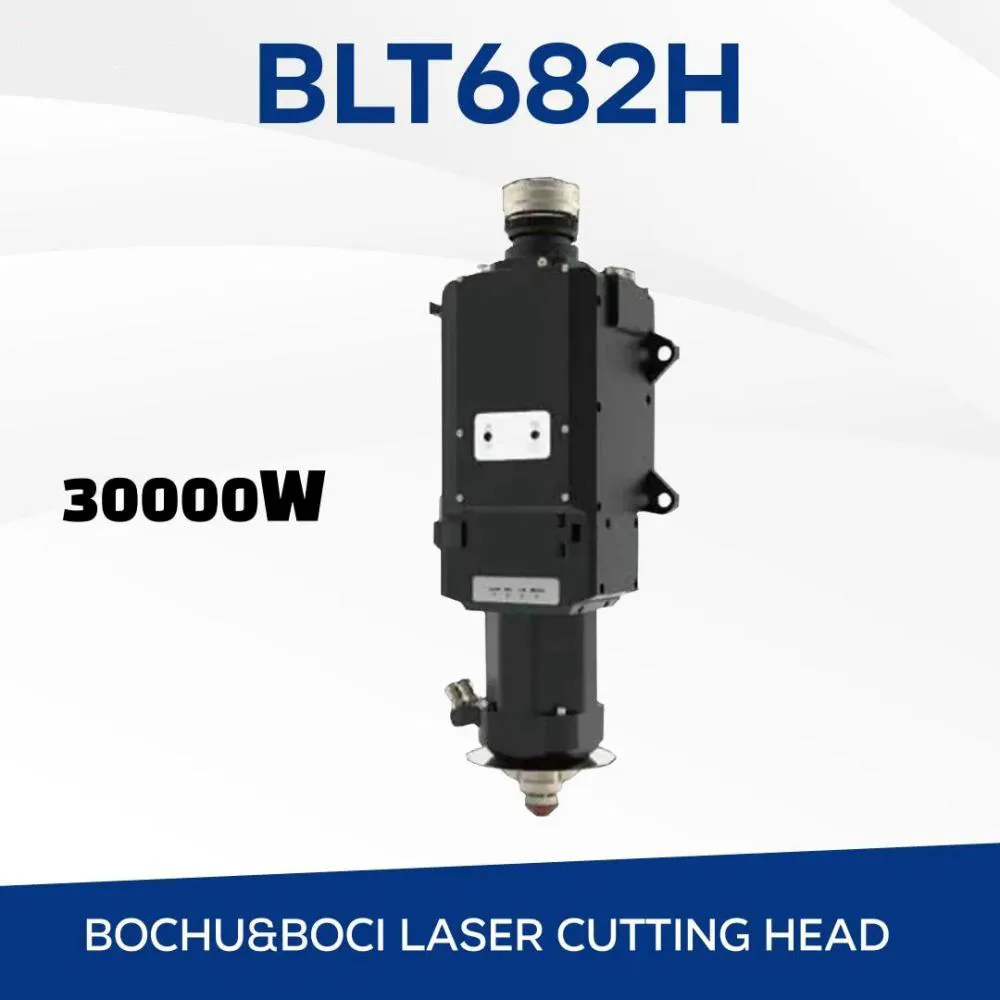

Parameter/Model | BLT642H | BLT662H | BLT682H |
Cutter Model | BLT642H | BLT662H | BLT682H |
Power Level | ≤15kW | ≤20kW | ≤30kW |
Fiber Interface | Q+、QD、QBH、ADD | Q+、QD、QBH、ADD | Q+、QD、QBH、ADD |
Focal Distance (mm) | 200 | 200 | 200/300 |
Size (mm) | 428.3×181 | 428.3×181 | 498×181 |
Weight（kg） | 9.5 | 9.5 | 10.6 for F300; 9.5 for F200 |
Auto Focus Range（mm） | ±50 | ±50 | ±50 |
Laser Wavelength（nm） | 1030-1090 | 1030-1090 | 1030-1090 |
Max Gas Pressure（Bar） | 25 | 25 | 25 |
