Features:
- High-quality ZnSe Crystal: USA CVD ZnSe material is used in laser engraving and cutting machines up to 500W and provides the best optical performance.
- Superb Coating: Double-sided solid coating minimizes laser loss and transmits light up to 99.8%.
- High Precision Process: Excellent Substrate + Precise Sling + Polishing + Grinding. Higher quality and better heat dissipation.
- Wide Compatibility: Compatible with a wide range of CO2 tube laser engravers and cutters.
Diameter | Focal Length | Edge Thickness | Recommended |
12mm
| 25.4/38.1/50.8/63.5mm
| 2mm
| 30-50W
|
15mm
| 50.8/63.5mm
| 50-180W
| |
18mm
| 25.4/38.1/50.8/63.5/76.2/101.6/127/160mm
| ||
19.05mm
| |||
20mm
| |||
25 (25.4)mm
| 50.8/63.5/76.2/101.6/127/160mm | 3mm
| 150-500W
|
Tips:
- Focus Lens Diameter: Higher power lasers require larger diameter lenses to prevent thermal overload.
- Focal Length: Focal length affects both spot size and depth of focus. In general, a shorter focal length will produce a smaller focused spot and a shorter depth of focus.
- How to install: Convex Face to Laser and Concave Face to Carving.
Specifications:

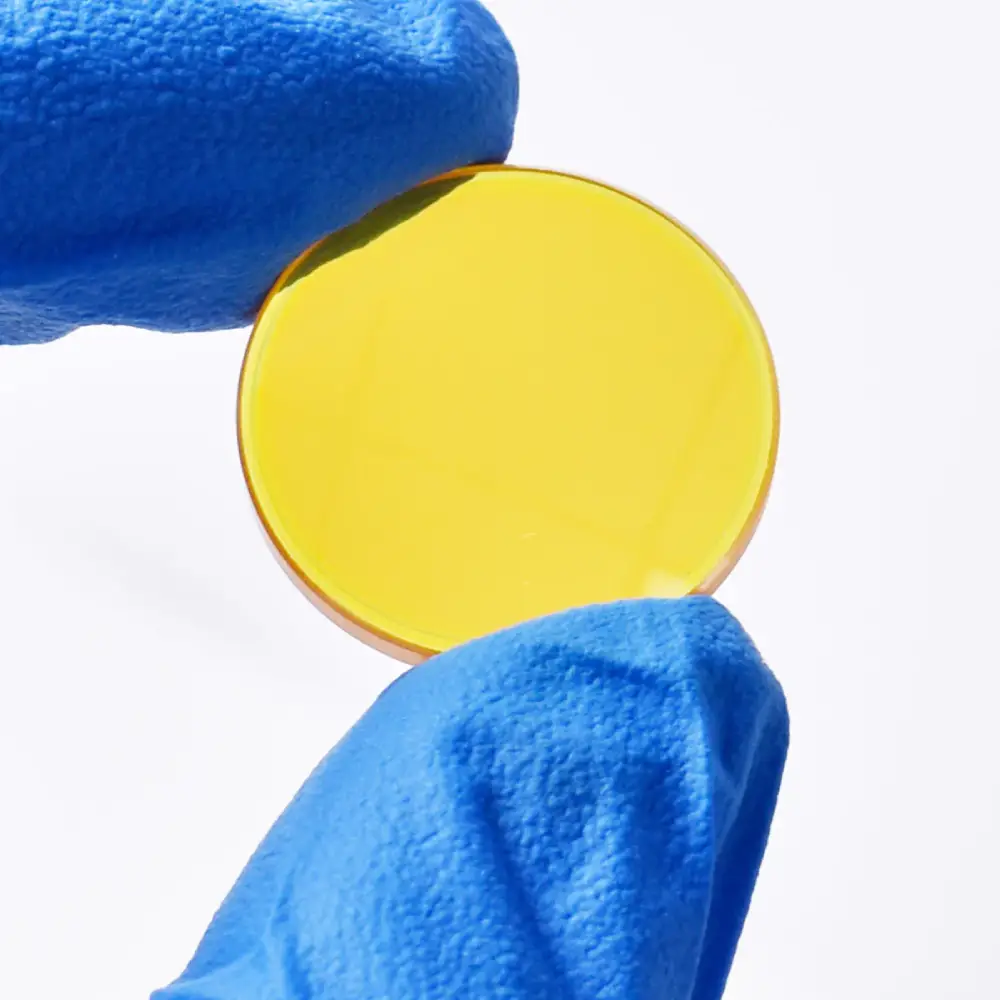

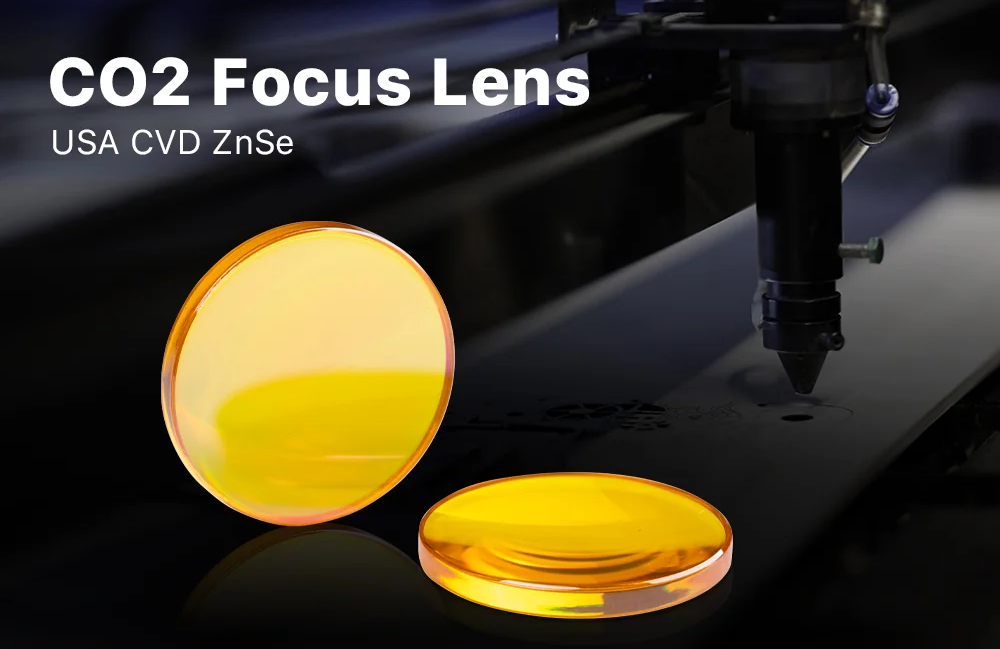

Material: USA CVD ZnSe
Shape: Meniscus Focus Lens
Color: Yellow
Wavelength: 10.6 um (10600 nm)
Diameter: 12/15/18/19.05/20/25mm
Diameter tolerance: +0/-0.1mm
Focal Length: 25.4/38.1/50.8/63.5/76.2/101.6/127/160/190.5mm
Focal Length tolerance: ±2%
Transmittance: 99.8%
Clear aperture (polished): >90%
AR coating reflectivity: <0.2%
Warranty: 1 Year
Package: 1 x USA CVD ZnSe Focus Lens
