RAYTOOLS XC3000 Series – Professional CNC Software
The XC3000S Series by RAYTOOLS is a high-end CNC software, specifically designed for industrial laser production applications. It’s highly compatible with various laser cutting machines in the industry, featuring a comprehensive range of functional modules and an independent process database. The software’s user-friendly interface ensures an efficient and smooth operational experience for users.
Bus Analog Version VS Pulse Analog Version
Bus Analog uses a network similar to the EtherCAT protocol to enhance the efficiency and scalability of laser cutting operations. This version is ideal for complex systems requiring high-speed communication and robust error management, enabling rapid data processing and a high degree of reliability.
Pulse Analog, similar to point-to-point transmission, involves direct connections between the controller and devices. It’s straightforward and well-suited for smaller setups with limited scalability. This version tends to be more susceptible to interference, affecting precision and stability.

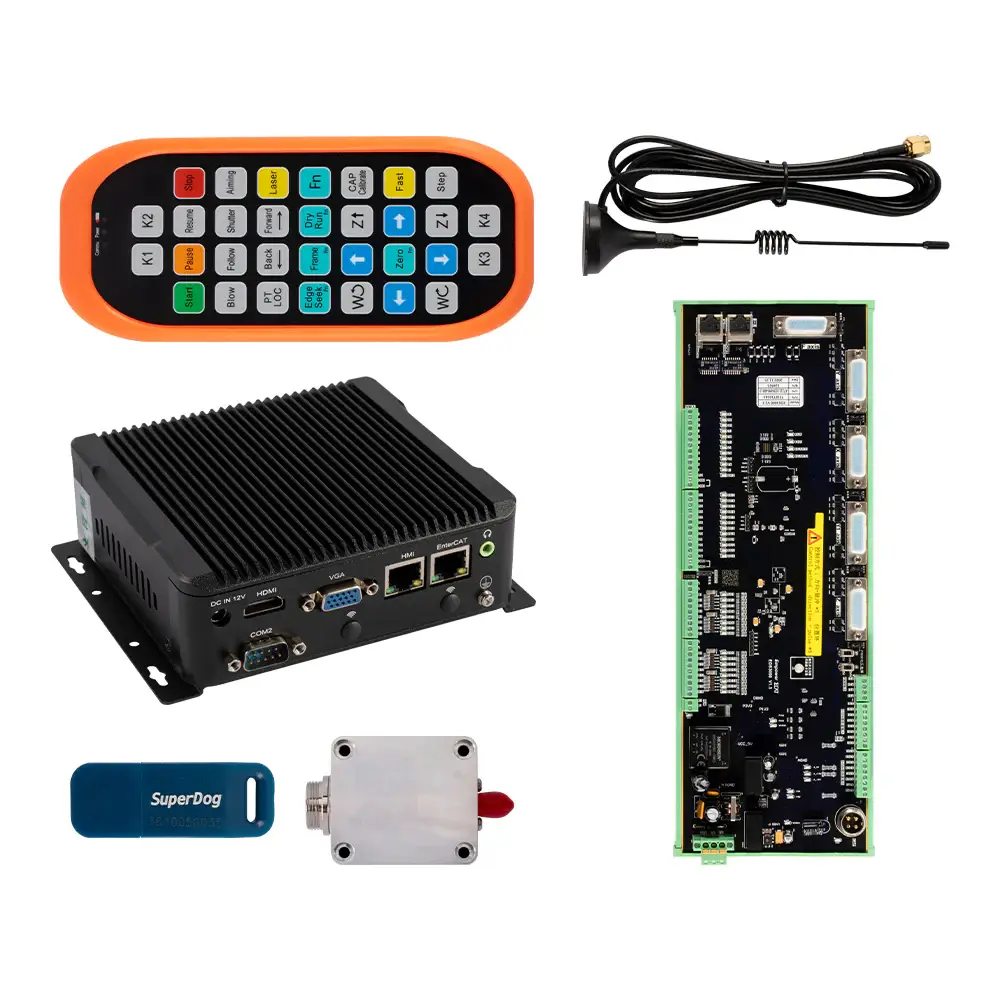

What’s in the Box?
- EPC-2000
- EDS3000I/O Module
- Wireless Handheld Box
- TTA
- EDS2010 I/O Module (optional)
- Control Cable
- Ethernet Cable
- Sensor Cable
Shipping and Return Policy
- Shipping: Orders typically ship within 3-4 business days. Delivery times may vary based on location.
- Returns: 30-day return policy on items in new, unused condition. Contact customer support for returns. Restocking fee may apply.
Key Features
- More Professional: Tailored for industrial laser production applications.
- Easy to Operate: User-friendly software interface for smooth operation.
- Independent Process Database: Includes rich functional modules.
- Good Compatibility: Works with a variety of mainstream laser-cutting equipment.
Technical Parameters
EtherCAT
- Power Requirement: Flexible access to system topology
Motion Control
- Control Method: Pulse, 5-way universal axis interface, high-precision position feedback, CiA402 standard support, 1-way F-axis for laser head focus control
- Motion Performance: Control period of 1ms, S-type acceleration/deceleration, advanced-planned speed
IO Function
- Digital Inputs: 24 ways with high/low side configuration
- Digital Outputs: 16 ways of 24V generic outputs
- AD Inputs: 4 ways, 16-bit high-resolution, -10V to +10V range
- PWM Outputs: 2 groups, 0~30kHz frequency range, 1% accuracy
- Laser Control: Interface with external capacitance amplifier for EtherCAT-type capacitive height control
Temperature
- Operating Range: 0° C to +80° C
Work Environment
- Environmental Pressure: 0.096MPa to 0.106MPa
- Relative Humidity: 0 to 70% (non-condensing)
Power Requirement
- EPC-2000: 24V DC (9-36V wide voltage module)
- EDS-3000: 24V DC
Component Specifications
- Network Card: Gigabit NIC, 2× ports
- USB: USB 2.0, 4× ports; USB 3.0, 2× ports
- Storage Device: 2.5″ HD, 1× slot; MSATA, 1× slot
- Ambient Temperature: Operating Range -20℃ to 60℃
- Ambient Humidity: Humidity Range 5% to 95%
- Display: Supports HDMI and VGA
- Power Supply: 9-36V wide voltage module
- Dimensions: 181.7mm×126.5mm×54m
