Brogo Backpack Mini Pulsed Handheld cleaning Machine

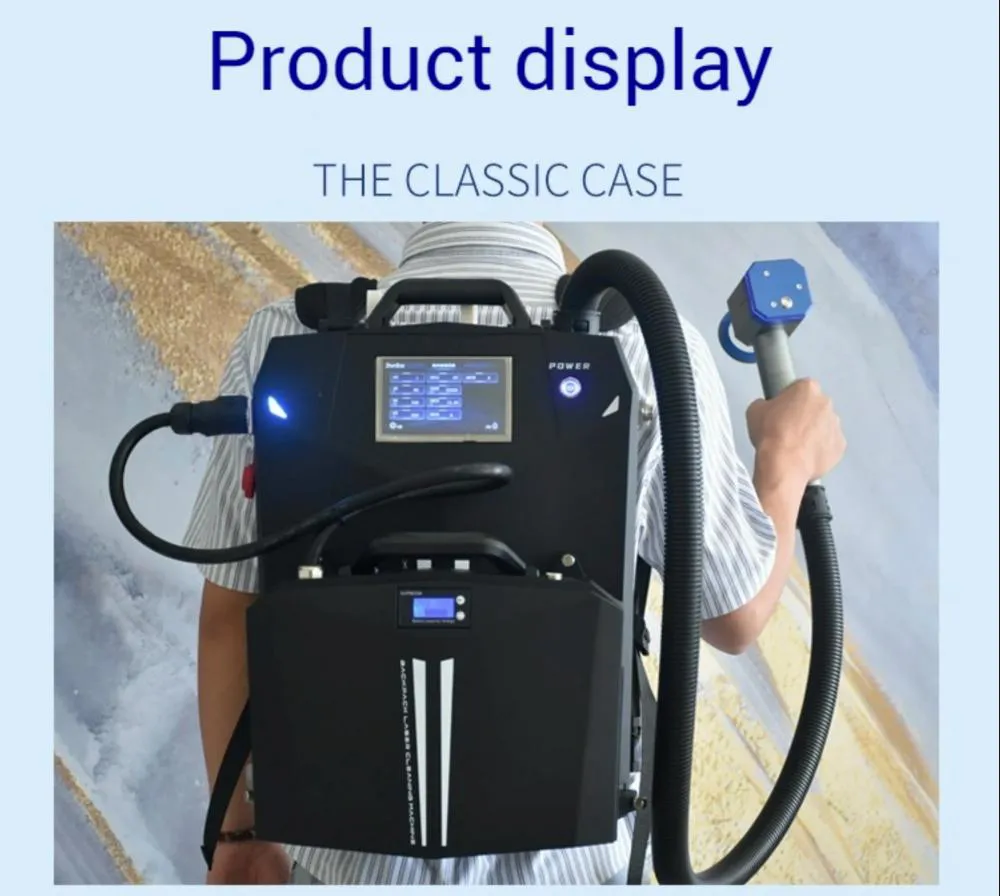

Brogo’s portable laser cleaning machine adopts a backpack design. It can be handheld, carried on the shoulder, or fixed at the workstation. This laser paint remover is suitable for various handheld cleaning scenarios, especially ideal for high-altitude operations and large workpieces.
The total weight of the Brogo’s pulse laser cleaning machine is 22 KG, which is compact, small, and lightweight. If the workplace doesn’t have power, the pulse laser cleaning machine can be equipped with an optional mobile power supply.
Removes rust, paint, oil, oxide films, welding scale, and carbon deposits without damaging or thermally deforming the base material.
Precision-Cleaning
Pulsed Laser Type. Triple Your Cleaning Capacity. Zero Chemical Waste.
Durable
Made from industrial-grade material that withstands the test of time.
Easy Installation
Designed for quick and hassle-free installation, getting your machine up and running in no time.
Versatile Compatibility
Suitable for various materials and ideal for precision cleaning industry.
100% ROI, Affordable, and Expert-Supported
The Brogo 100W-500W Handheld Laser Cleaner revolutionizes industrial cleaning with backpack design and a 0.75kg ultra-light cleaning head. Powered by pulsed laser technology, it removes rust, paint, and contaminants non-destructively across metals, coatings, and stone surfaces. Featuring 8 customized modes and 10-layer safety protocols, this lightweight yet rugged tool empowers automotive, aerospace, and restoration professionals to clean like a pro—no chemicals, no waste, just precision. Slip it into a car trunk, fly with it on trains, or deploy it globally.
10 Supported Languages for the Brogo 200W Pulse Laser Cleaning Machine
Brogo’s 200W pulse laser cleaning machine currently supports Chinese, Traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French, Polish, totally 10 languages.
You can easily switch between these language options directly on the machine’s interface. If you require any other languages, we also provide customized language services.
8 Cleaning Modes for Brogo 200W Pulse Laser Cleaning Machine
The operation interface of the Brogo’s pulse laser cleaning machine offers 8 cleaning modes:
- Straight Line Mode
- Rectangular Mode 1
- Circular Mode
- Rectangular Mode 2
- Double Helix Mode
- SineMode
- RingMode
- FreeMode

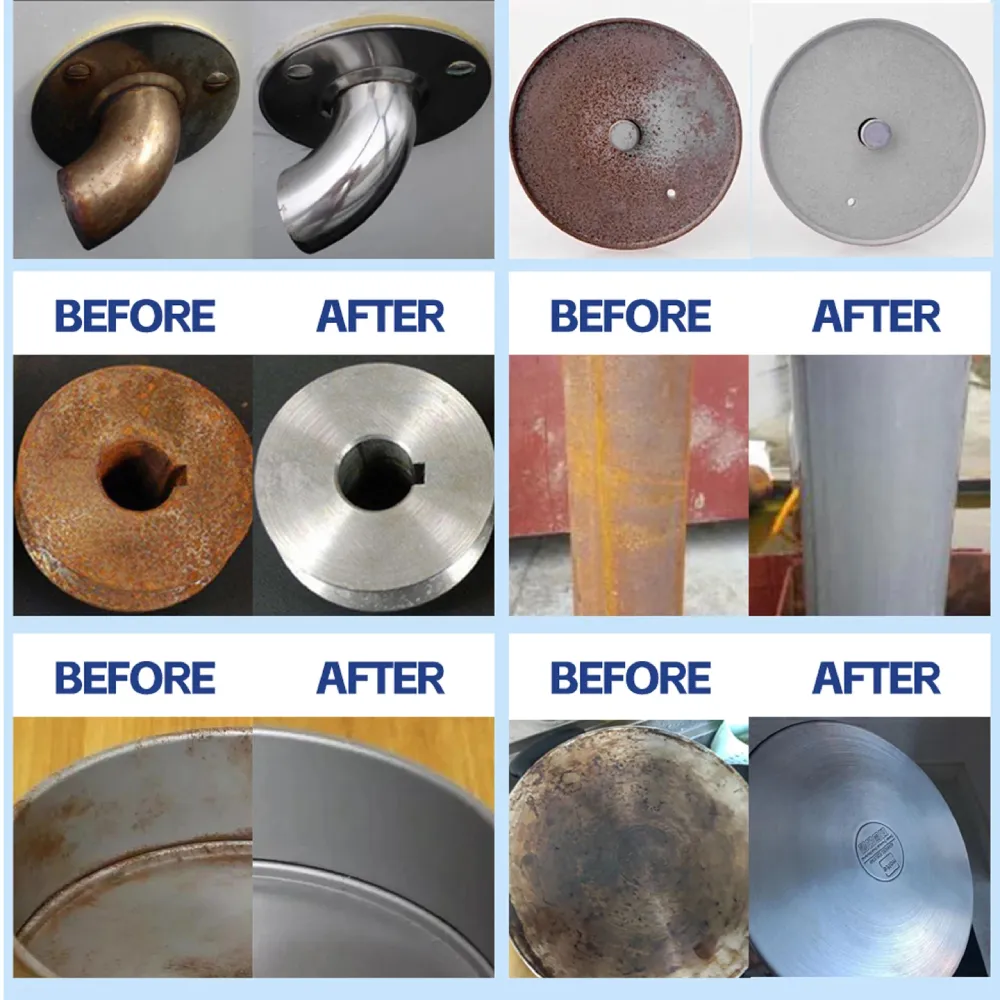

Pulse Laser Cleaning Machine Effects Before VS After
Paint Stripping
The laser emits a high-energy beam, vaporizing and decomposing the paint layer.
Rust Removal
Laser cleaning machines use high-energy laser beams to target and vaporize rust precisely.
Contaminant Removal
The laser protects a variety of substrates, including walls, brick joints, metals, and stones.
Oxide Cleaning
Laser cleaning machines provide a precise, non-contact method for removing oxide layers from metal surfaces.
Oil Cleaning
For oil removal, we recommend pulsed laser cleaning models with a power range of 300W to 1000W.
Wood Paint Cleaning
The pulsed laser energy can be adjusted to vaporize or remove without damaging the texture and structure of the wood.
Find Your Perfect Match: Power-Scalable Solutions for Every Budget
From small workshops to heavy-duty industrial sites – we’ve got you covered.
Parameter | 100W | 200W | 300W |
Maximum average power (W) | 100 | 200 | 300 |
Power range (%) | 10-100 | ||
Output central wavelength (nm) | 1064 | ||
Bandwidth (nm) | 5 | ||
Maximum pulse energy (mJ) | 2 | 2 | 2 |
Pulse repetition rate (kHz) | 100-120 | 100-120 | 100-120 |
Pulse width (ns) | 180±10@65kHz | 220±10@130kHz | 220±10@130kHz |
Beam quality (M²) | 1.6 | ||
Fiber length (m) | 1.5 | ||
Minimum bending radius (mm) | 150 | ||
System power requirements (V) | 220 | ||
Power consumption (W) | 500 | 800 | 900 |
Operating temperature (℃) | 10-40 | ||
Storage temperature (℃) | -10-60 | ||
Relative humidity (%) | <80 | ||
System dimensions (mm) | 345*192*469 | 345*192*469 | 345*192*469 |
Total weight (kg) | 7.8 | 10.5 | 15.5 |
Laser head weight (kg) | <0.75 | ||
Laser head type | 2D scanning | ||
Scanning range (mm) | 130×130 | ||
Focal length (mm) | 230 | ||
Operating mode | Manual/Auto | ||
Safety class | Class 4 | ||
Pulsed Laser Cleaning VS Traditional Cleaning
Upgrade to a cleaner, greener, and safer solution
Criteria | Pulsed Laser Cleaning | Dry Ice Blasting | Chemical Cleaning |
Mechanism | ✅Laser vaporization | ❄️CO₂ impact | ☠️Chemical dissolution |
Material Safety | ✅Non-damaging | ⚠️Risk of embrittlement | ⚠️Corrosion risk |
Precision | 🎯0.1mm adjustable | Surface-level only | Uncontrolled |
Eco-Friendliness | 🌱Zero pollution | ⚠️CO₂ emissions | ☠️Toxic waste |
Cost/m² | 💲$0.04 (electric) | $0.35+ | $0.20+ |
Safety | ✅10 safety protocols | ⚠️85dB noise | ☠️Toxic vapor |
Speed | ⚡3-5 m²/h | 1-2 m²/h | Slow |
Portability | ✈️15.5kg (A3-size) | Bulky system | Moderate |
Compliance | 📜REACH/OSHA | Partial | High-risk |
Frequently Asked Questions!
Laser cleaning, also known as laser material removal, is an advanced method of eliminatingmaterial from a surface achieved through the precise manipulation of a scanned laser beam. This process utilizes laser thermal shock, which effectively peels off, vaporizes, sublimates,or burns away unwanted waste material without causing harm to the substrate. Laser cleaning is used across a variety of industries to remove unwanted surface materials likecoatings, paints, rust, oil, and for surface preparation for welding and coatin.
Laser cleaning machines are suitable for removing contaminants from the surfaces of various materials, including metals, stones, wood, ceramics, concrete, etc.
It can clean rust, oxide layer, oil stains, coatings, welding slag, paint films, carbides, oxide scale, resin residues, mold deposits, etc.
Laser cleaning is widely used in various applications, including the maintenance of manufacturing equipment, industrial parts, furniture restoration, the preservation of cultural relics, rail transit maintenance, aerospace component cleaning, military surface treatment, and the removal of paint and rust from environmental protection facilities.
The laser cleaning machine basically requires no consumables and results in low operating costs.
Daily maintenance is also very simple, mainly including regular cleaning of protective lenses, checking the water cooling system, and cleaning the fan filter to ensure the continuous and stable operation of the equipment. If it is an air-cooled cooling system, this maintenance step can be ignored.
Laser cleaning is a non-contact, energy-controlled, efficient cleaning method that can accurately remove surface dirt while effectively protecting the substrate from damage.
Due to the high power density, continuous laser cleaning can cause slight thermal effects on the surface of some materials when repeated in the same area.
Pulse laser cleaning is more suitable for high-precision, non-destructive cleaning of sensitive materials due to its short pulse and low heat input characteristics.
Laser cleaning speed depends on the equipment’s power, the material type, and the stain thickness.
Generally speaking, the greater the power, the faster the cleaning speed. The cleaning speed of standard laser cleaners ranges from 1 to 5 square meters per hour.
For light contaminants, the cleaning efficiency is higher;
For heavy rust or thick coatings, the cleaning time is relatively long.
Our sales manager will recommend the most suitable model and parameter settings based on your specific needs.
